PRODUCTS
Our Scope
We supply bespoke panel systems tailored to meet our customers exact requirements. Using a range of lightweight core materials and outer face substrates. Bondlite panels offer an excellent strength to weight ratio and can be design engineered to meet most levels of performance in terms of weight, rigidity, impact resistance and durability.

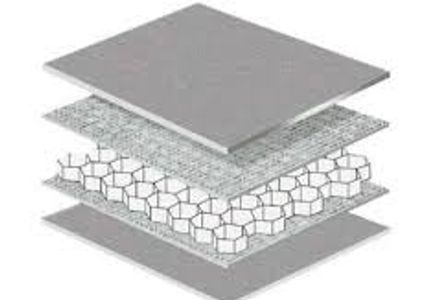

BONDLITE HONEYCOMB PANELS
Bondlite AL100 - Aluminium Panel
Outer faces: 0.5mm thick aluminium skins
Core: 5.2-1/4-3003N aluminium honeycomb
Adhesive: High performance heat cured epoxy film
Stock Sizes: 2500mm x 1250mm x 12.7mm (1/2")
2500mm x 1250mm x 25.4mm (1")
Approx Weight: 12.8kg
These panels are made to a particular thickness to allow for an off the shelf aluminium edging to be fitted should your application require it.
Bondlite GF200 - Glass Fibre Panel
Outer faces: 2ply epoxy glass fibre pre preg
Core: 5.2-1/4-3003N aluminium honeycomb
Stock Sizes: 2440mm x 1240mm x 12.7mm (1/2")
2440mm x 1240mm x 25.4mm (1")
Approx Weight: 9.5kg
Bondlite GF210 - Glass Fibre + Peel Ply
Technically the same as a GF200 however this panel is supplied with a peel ply finish on both faces. The peel ply is removed prior to bonding any additional substrates to the panel to ensure maximum bond strengths are achieved. No surface preparation is require for this panel.
The GF200 range uses glass fibre outer faces which are pre impregnated with a heat cured resin system to maximize bond strength.
BONDLITE COMMERCIAL GRADE HONEYCOMB CORES
Depending on how the core material is being used, one type will offer better performance than another so if you are unfamiliar with the material please contact our Technical Sales Department on 01480 716604 to discuss your project in more detail.
Aluminium Honeycomb Core
1.8-3/4-3003
2.6-1/2-3003
3.7-3/8-3003
3.4-1/4-3003
5.2-1/4-3003
Cores can be supplied in slice form, expanded or as a block. Perforated or non perforated as required.
Product Designation For Core Type:1.8-3/4-25N-3003
1.8 Density in pounds per cubic foot (lb/ft)
3/4 Cell size in fractions of an inch
25 Nominal foil thickness in ten thousands of an inch N/P
N = Non perforated foil P = Perforated Foil
3003 Aluminium alloy grade
